001GR COROLLA WHEELS

Change your wheels.
Keep your hardware.

We forge each set from 6061-T6 and cut the lug seat to match the one your GR Corolla already has, so your factory studs and lug nuts carry over. You won’t need extended studs, aftermarket nuts or spacers to make an off-the-shelf offset work.

MACHINED TO ORDER FOR YOUR CAR.

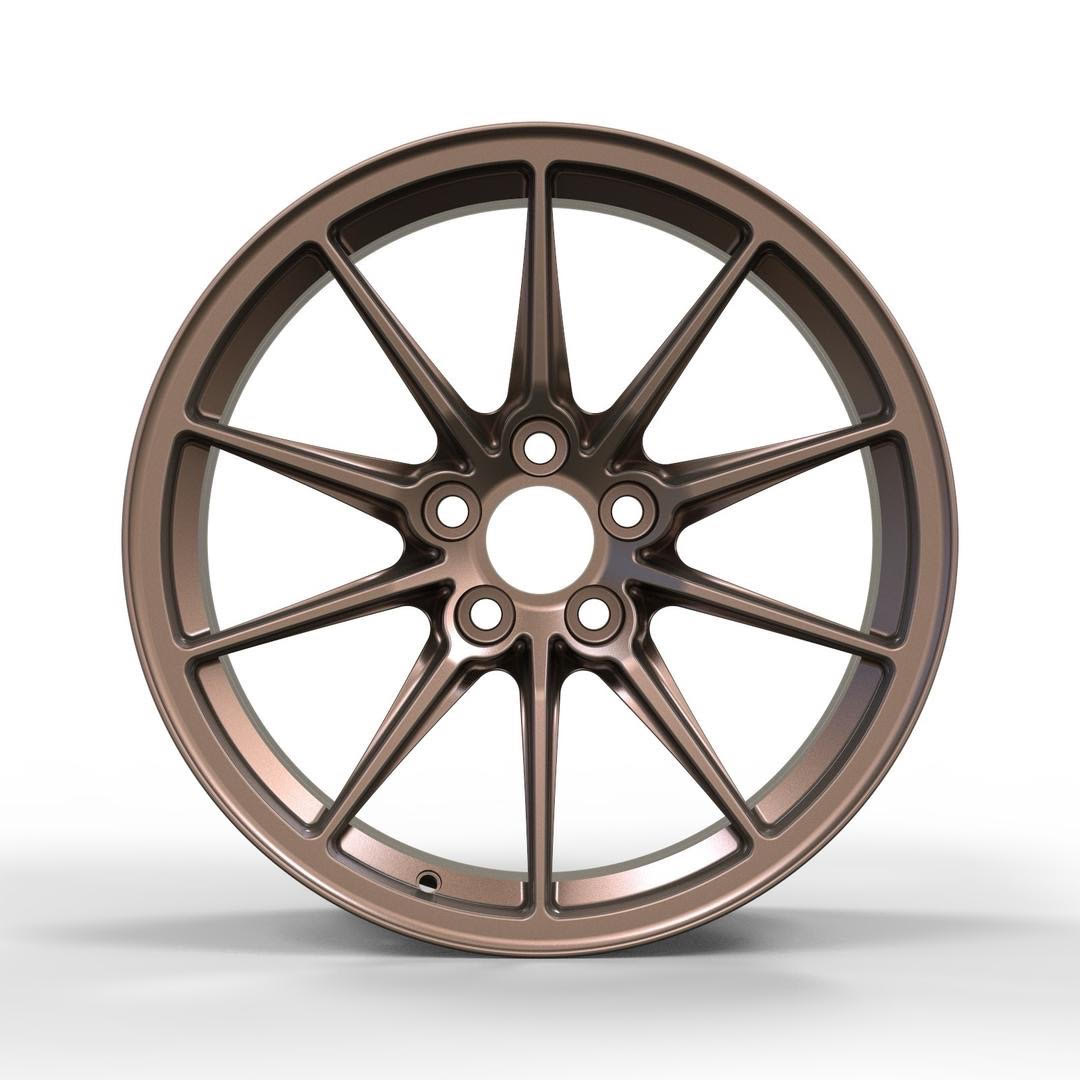

FIG. 01 / MN-1FRONT ELEVATION
MN-1, a forged J Curve Racing wheel, viewed face on
LUG SEATFORGED 6061-T6
CONSTRUCTION
Forged 6061-T6
LUG SEAT
Cut to your car
WHEEL STUDS
Your factory studs
LUG NUTS
Your factory nuts
002THE LUG SEATENGINEERING NOTE / GR COROLLA

We cut GR Corolla sets to fit your factory lug nuts.

Bolt pattern and hub bore get a wheel onto the hub. The lug seat, the surface each nut clamps against, decides which nuts work. Seats come in three common shapes: a cone, a ball and a flat (mag) face for a nut with a washer, often with a shank. A nut clamps correctly only against the shape it was made for.

Most aftermarket wheels use one seat shape for every car, so when it doesn’t match your nuts, you need new ones. A lug pad thicker than stock also leaves less thread engaged, and some cars then need extended studs.

Read the GR Corolla fitment guide

HARDWARE CHECK01-03
CHECKOff-the-shelf wheel[J CURVE]
GR Corolla set
01Lug seatOne shape for every carMatches your nuts
02Lug nutsOften new nutsYour factory nuts
03OffsetOne per part numberSet per order

Spacers, modified hubs and aftermarket studs or nuts change the seat and stud length the wheel needs, so tell us before you order.

  • 01 / SEAT SHAPE

    A mismatched nut clamps on an edge.

    A conical nut on a flat seat, or the reverse, touches the wheel along a thin line instead of a full face, and it can work loose. The bolt pattern doesn’t tell you which seat a wheel has.

  • 02 / THREAD ENGAGEMENT

    Lug pad thickness sets how much stud the nut reaches.

    A thicker lug pad moves the seat away from the hub, so the nut reaches less of the stud. The usual minimum is engaged thread at least as long as the stud’s diameter, and below that the wheel needs extended studs.

  • 03 / THE DRAWING

    On a GR Corolla set, you approve the seat before we cut it.

    We send a drawing with the full specification, seat shape included, for you to check against your car.

003GR COROLLA DESIGNSSEE EVERY DESIGN

Each design is
cut to your car.

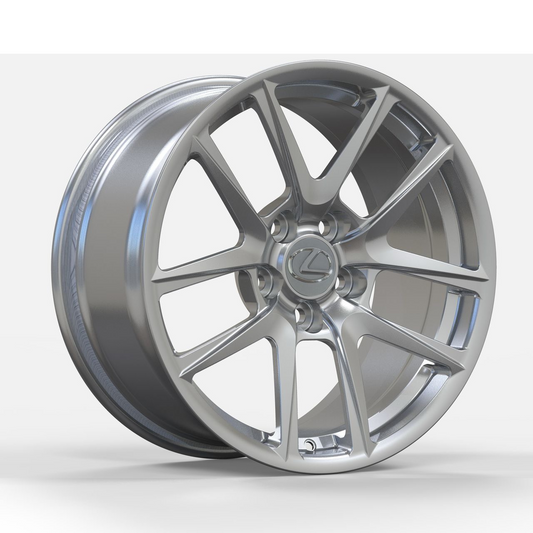

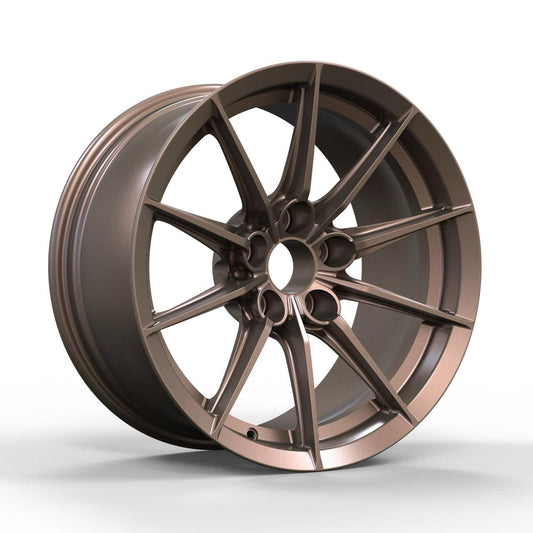

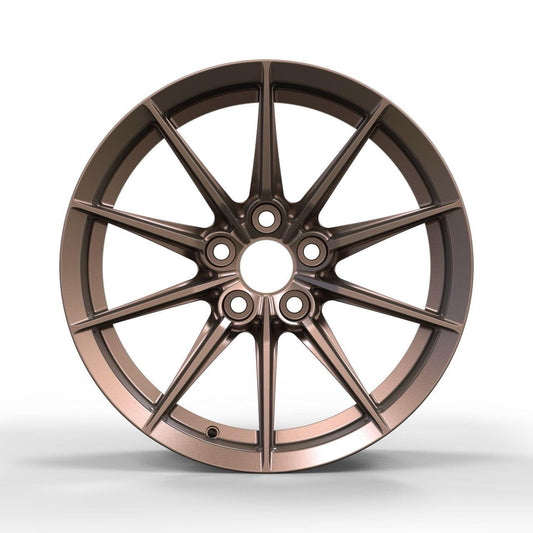

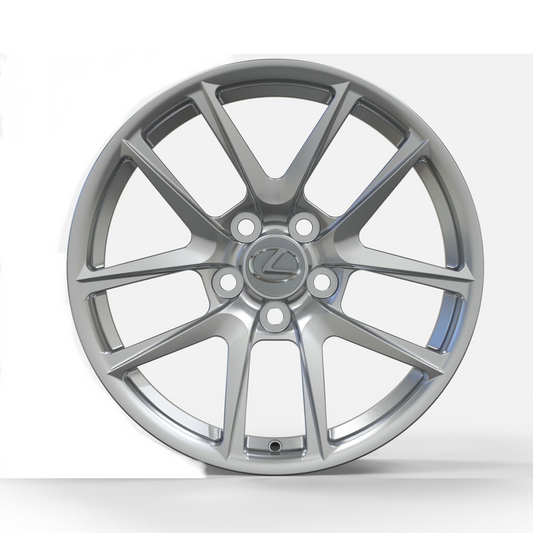

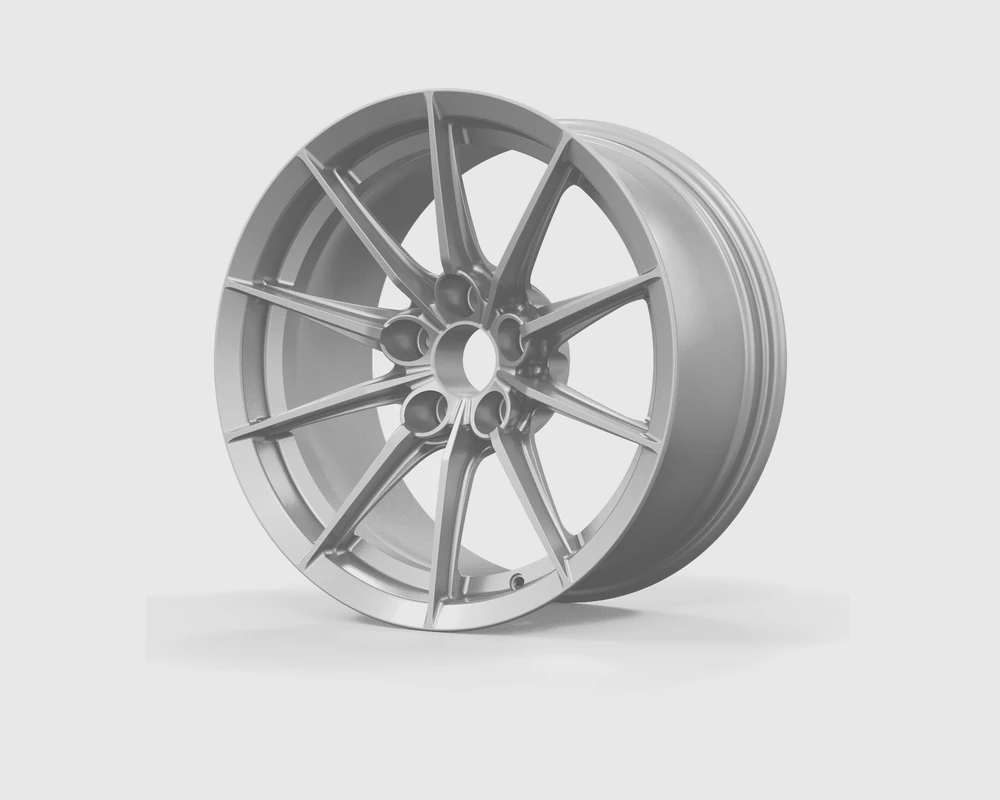

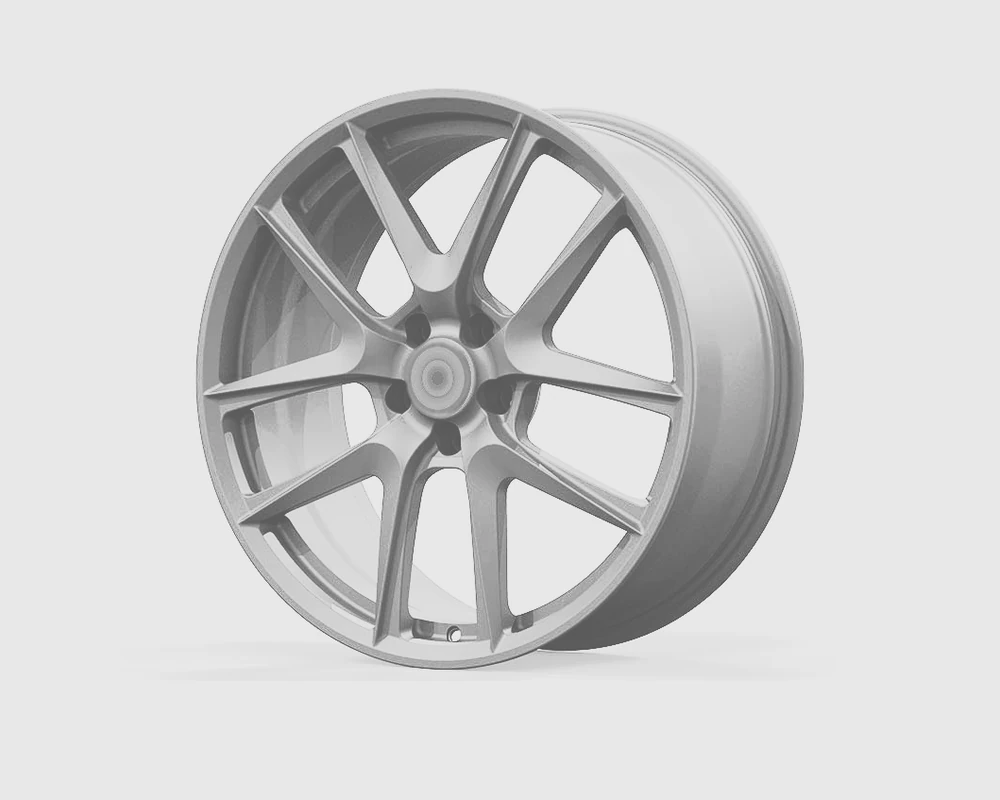

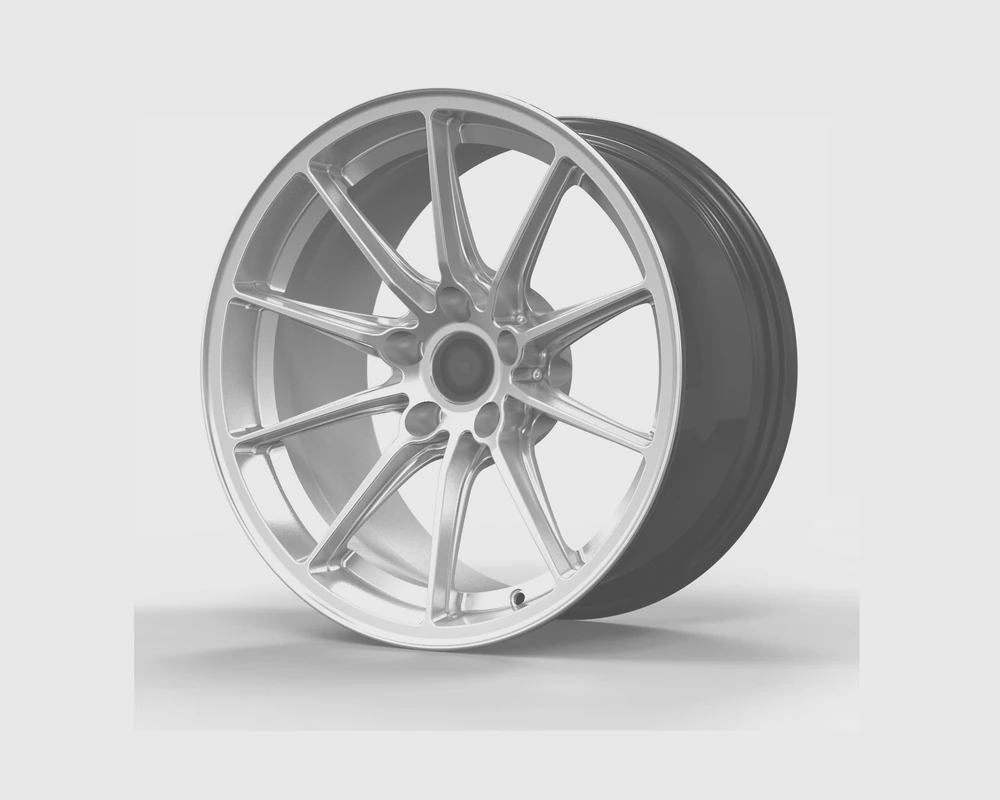

We build three designs for the GR Corolla. Pick the wheel, and we set its width, offset and seat to your car when you order.

MONOCHROME PRODUCT VIEWS / SEE EACH WHEEL FOR AVAILABLE FINISHES.

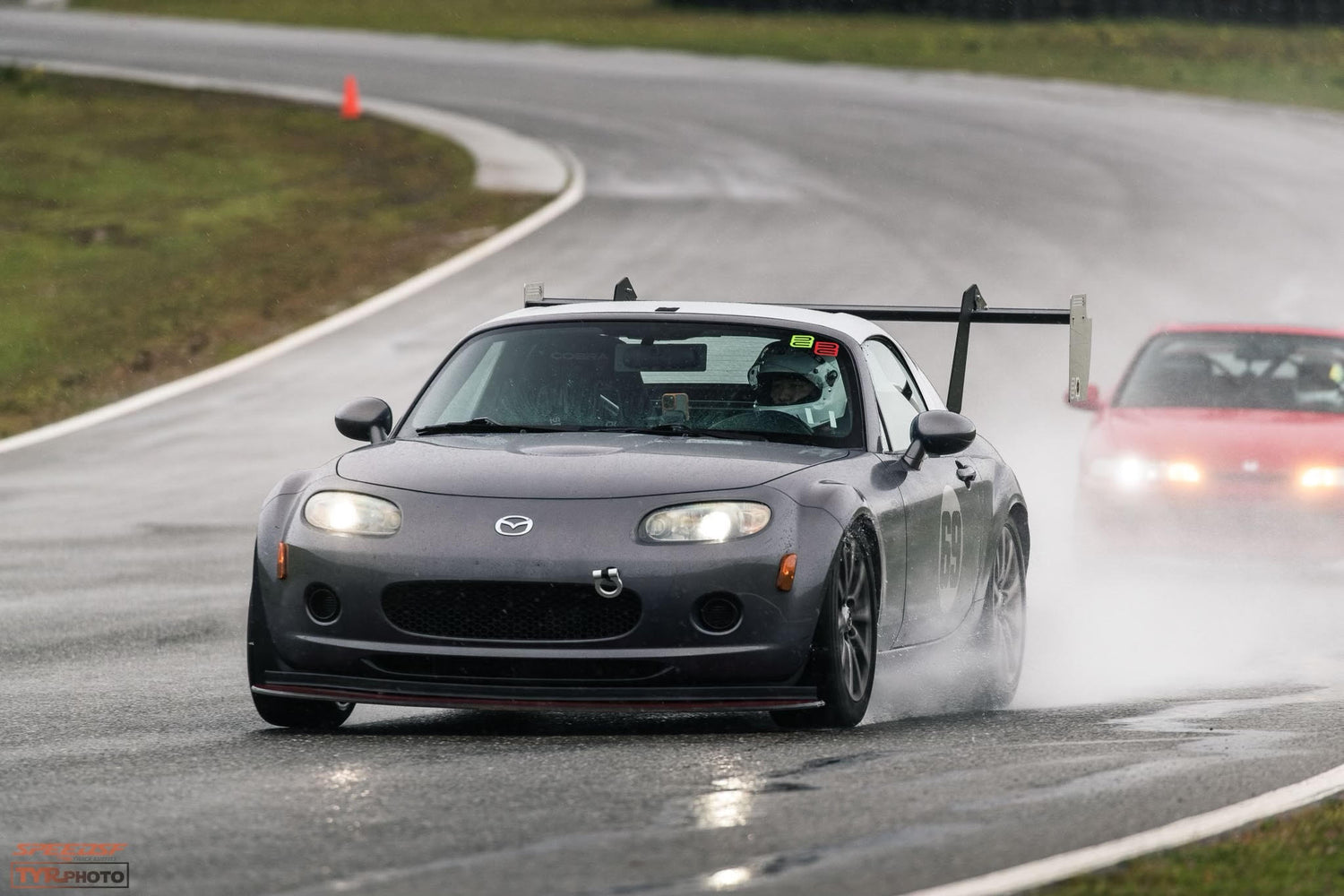

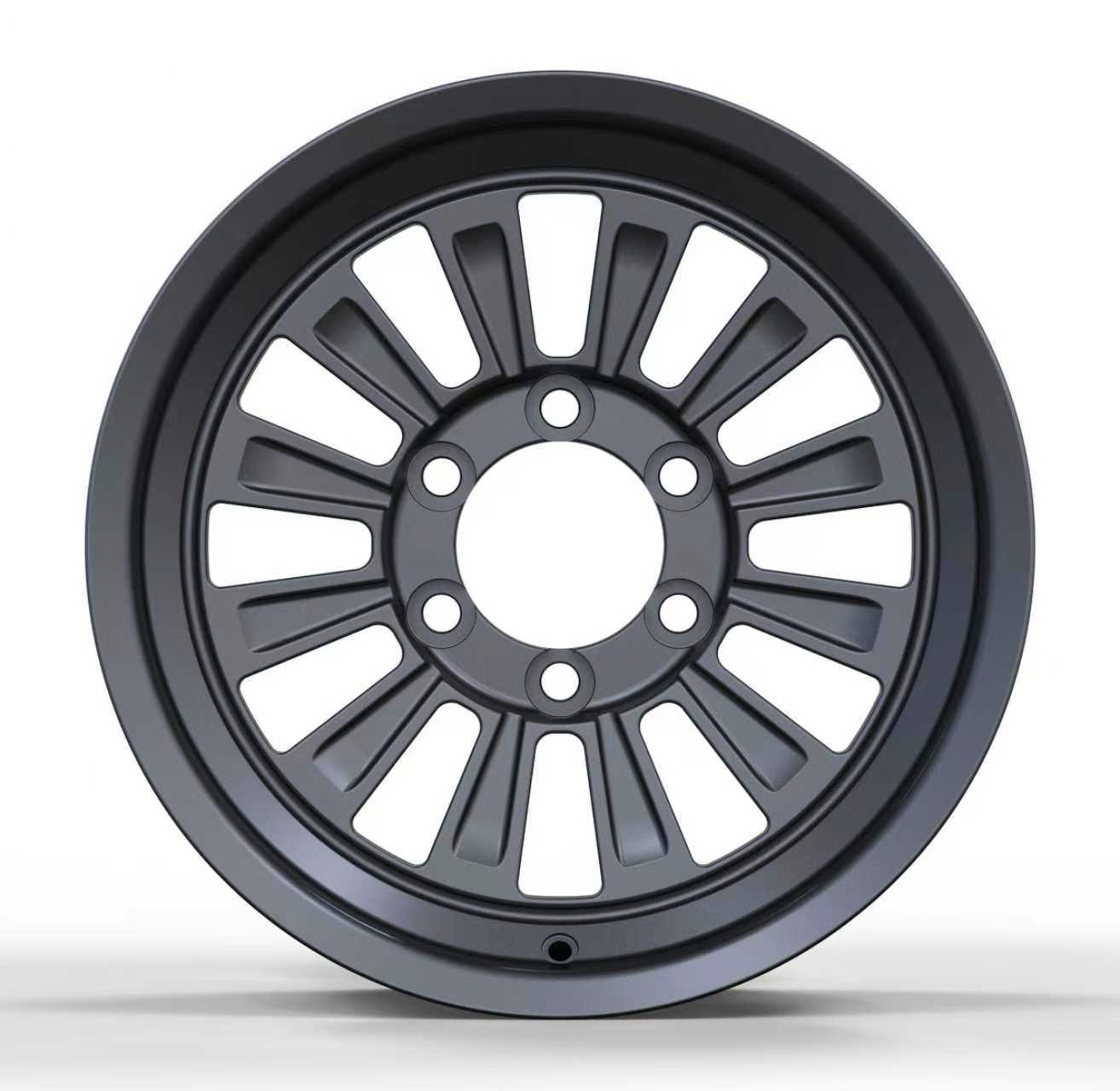

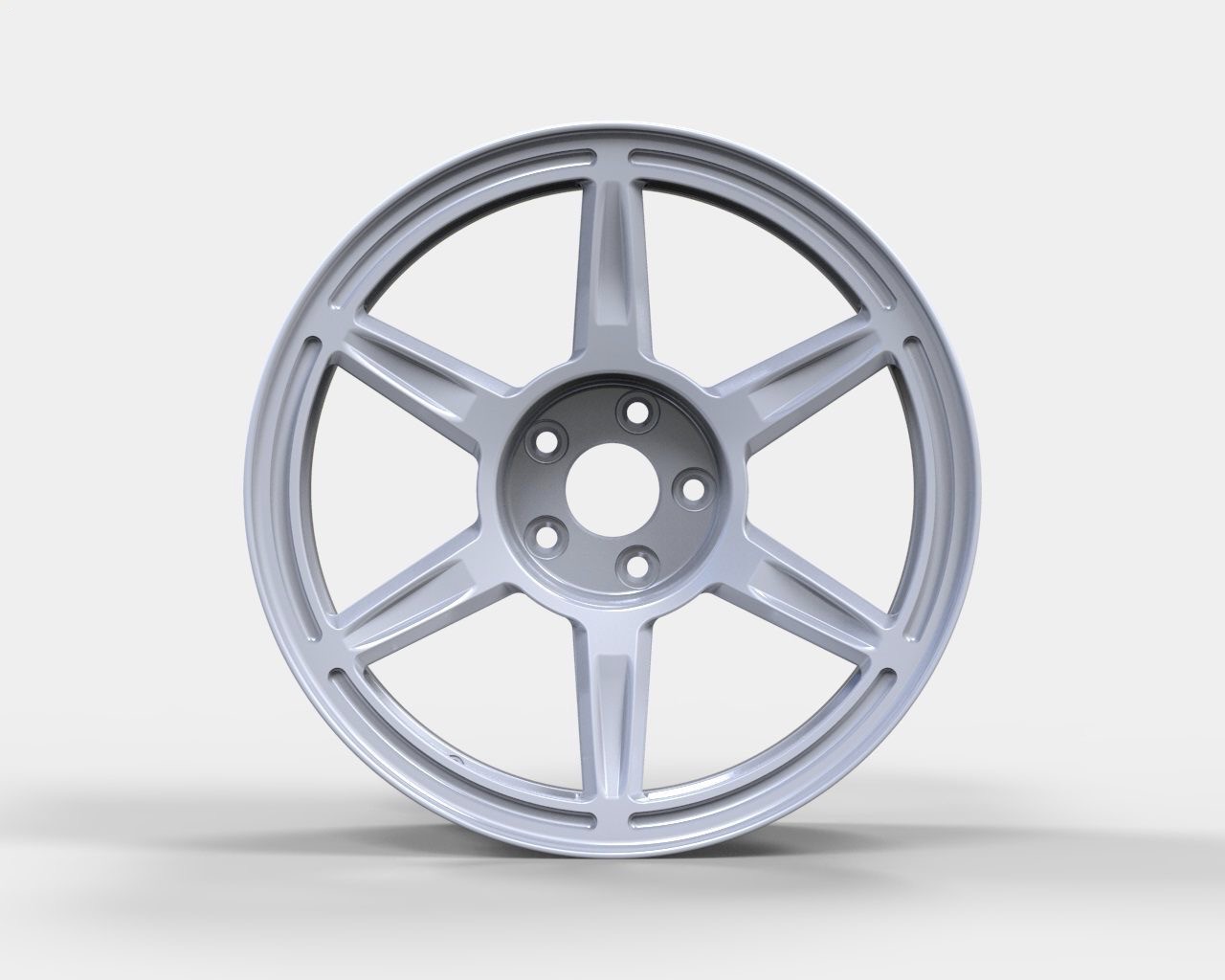

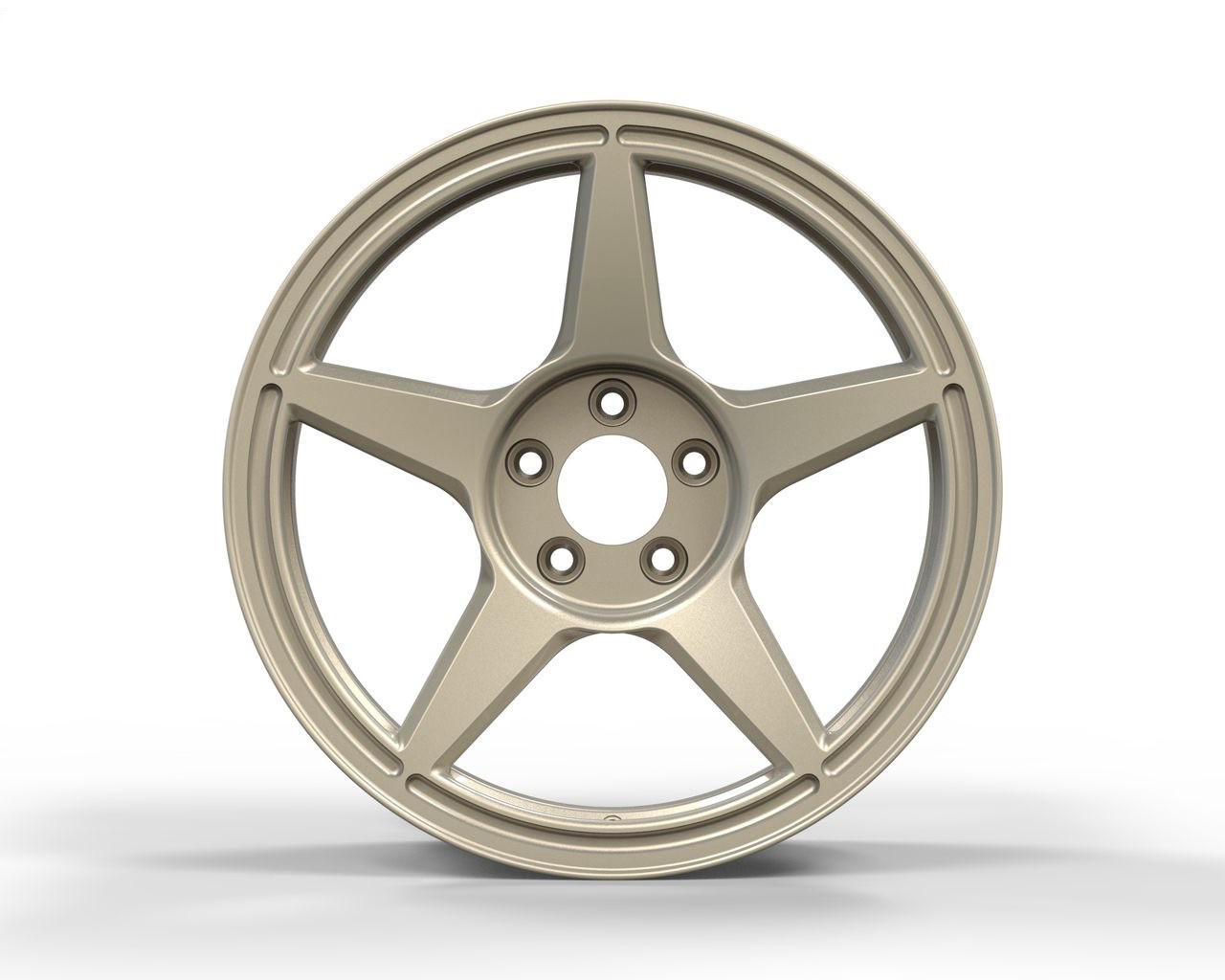

We forge 7 more designs the same way for other cars: G-12 Beadlock, 6-Spoke, P-Star, Spec Miata, Rally, Pirate and Petal. Tell us your car and we’ll cut a set to fit it. G-12M comes in one fixed size, with the offset and lug seat listed on its page.

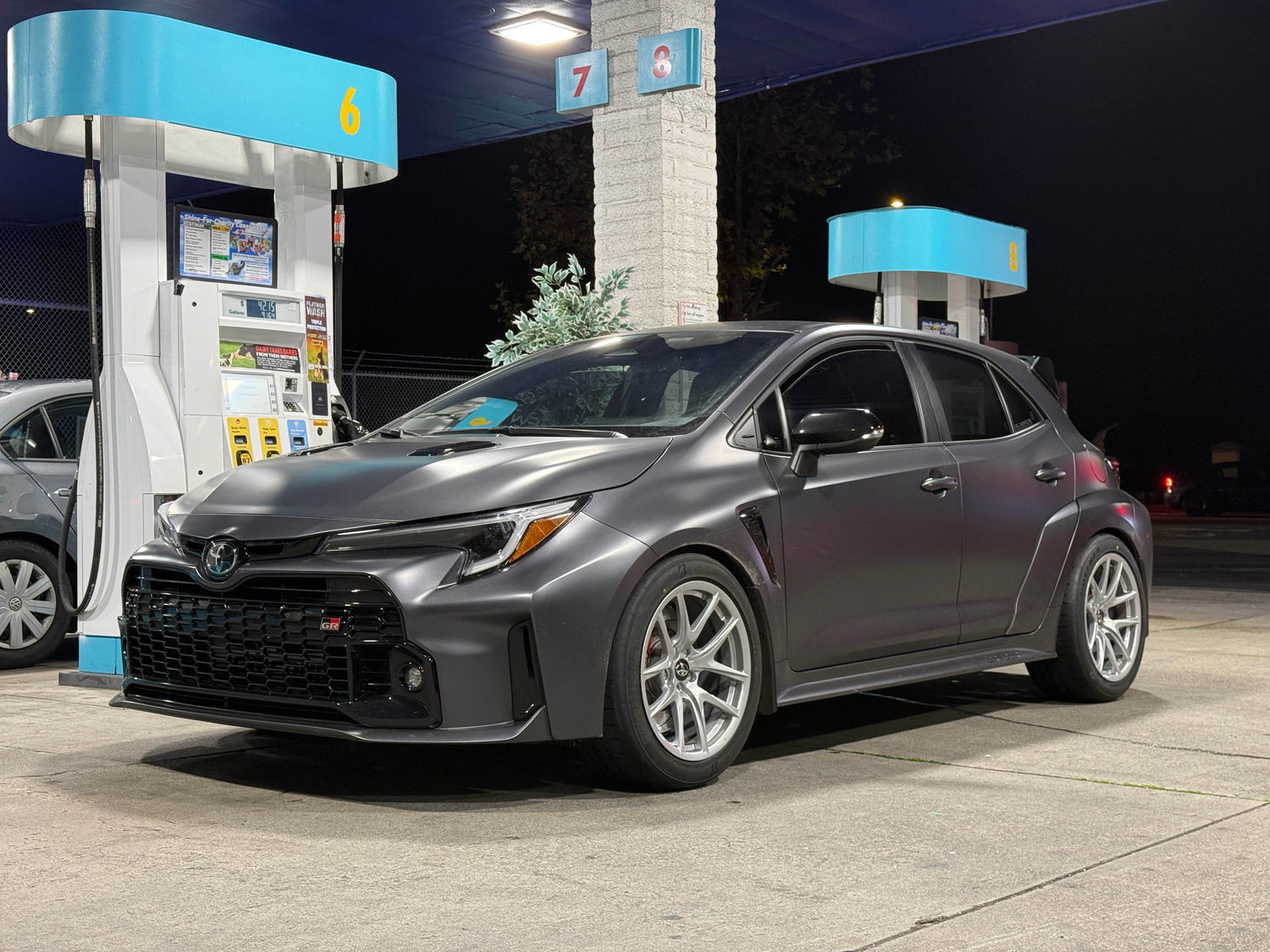

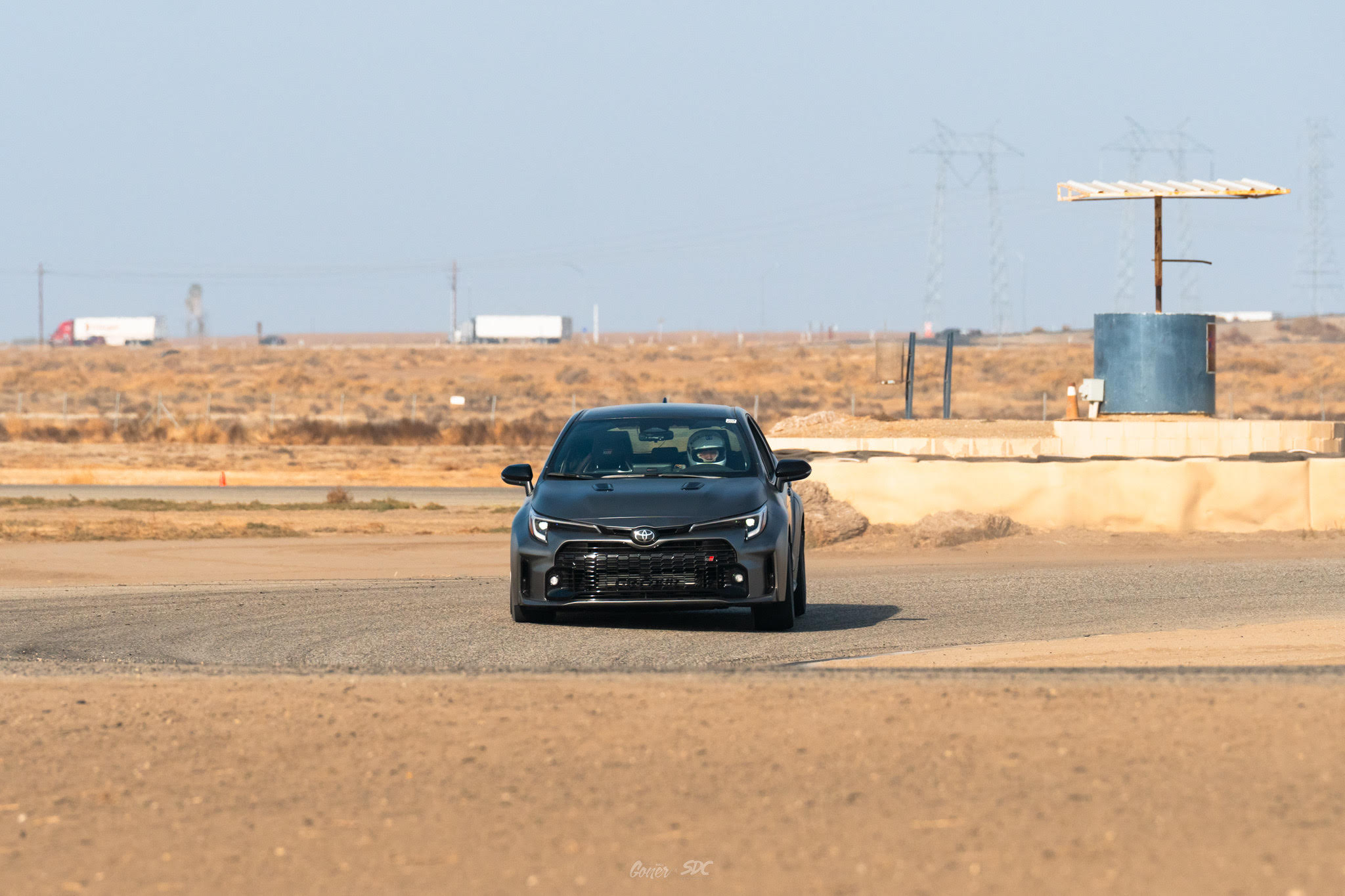

A Toyota GR Corolla on track

STREET + TRACK

Forged 6061-T6,
for street and track.

We machine every set for the car it goes on.

004BEFORE YOU BOLT UP

Fitment questionsto settle beforeyou order.

They cover lug nuts, studs, spacers and lead time.

Open the fitment guide
Why do aftermarket wheels so often need new lug nuts?

Most aftermarket wheels are machined with one seat shape and sold for every car. A nut clamps properly only against the shape it was made for, so when the wheel’s seat differs from your nuts, you need new nuts. Some combinations also need longer studs to keep full thread engagement.

Can I keep my factory lug nuts and studs?

Yes, on a made-to-order design. We machine the seat to match your car’s and confirm it on the drawing before we cut anything.

Does this apply to every J Curve wheel?

It applies to every made-to-order design: we cut each set for a known car and match the seat to it, whichever design you choose. G-12M is the exception, because it comes in one fixed size with the offset and lug seat listed on its page.

What if I run spacers or a modified setup?

Tell us before you order, because spacers, modified hubs and aftermarket studs or nuts change the seat and stud length the wheel needs. Send the model year, the width and offset you want, your tire size and the modifications, and we’ll work through the combination with you before we quote.

How long does it take?

8 to 12 weeks after you approve the drawing.

Where do I choose a size and finish, and see the price?

On each wheel’s page, which prices the set as you configure it. For a design without a page, or anything a page doesn’t offer, send us an inquiry. A made-to-order design is sized to your car either way, and G-12M comes in the size on its page.

START AN INQUIRY

Send us your car and the size you want, and we’ll quote it.
